Near-infrared modulated photothermal/nanozymatic dual-modal strategy for combating cancer via molybdenum selenide nanourchins

Cancer Nanotechnology volume 15, Article number: 56 (2024) Cite this article

Abstract

Background

Breast cancer, a major health concern globally, often faces challenges in the non-invasive elimination of cancer cells. This has prompted researchers to explore alternative strategies, such as photothermal therapy (PTT), which takes advantage of the location of breast cancer lesions. Additionally, the tumor microenvironment with high hydrogen peroxide (H2O2) provides a key prerequisite for treating tumors with nanozymes, especially those with peroxidase (POD)-like activity. However, the overexpression of TrxR1, which maintains redox homeostasis in tumor cells, limits reactive oxygen species (ROS)-based cytotoxic therapy. This study aims to present molybdenum selenide nano urchins (MoSe2 NUs) with excellent photothermal conversion efficiency, POD-like activity and selective inhibition of TrxR1 to achieve photothermal enhanced nanocatalytic therapy for combating breast cancer.

Methods

The characterization of MoSe2 NUs synthesized by the hydrothermal method was identified by TEM, XRD, Zeta potential and DLS. Whether MoSe2 NUs in conjunction with NIR possessed POD-like activities or not was identified via a TMB colorimetric method. The photothermal characteristics of MoSe2 NUs excited by near-infrared were recorded by an infrared thermal imaging camera. The antitumor effect of MoSe2 NUs was detected by cell death staining, apoptosis assay and animal experiments. TrxR1 and apoptosis-related protein expression were identified by Western blot and Immunohistochemistry.

Results

MoSe2 NUs possessed excellent photothermal conversion efficiency, peroxidase (POD)-like activity, and selective inhibition of TrxR1. Furthermore, the photothermal effect of MoSe2 NUs can enhance their POD-like activity, allowing for accurate cancer treatment under near-infrared (NIR) light. MoSe2 NUs plus NIR and MoSe2 NUs alone exhibited in vivo tumor inhibition rates of 69.7% and 35.1%, respectively. Mechanistically, NIR-regulated MoSe2 NUs induced potent apoptosis of cancer cells by downregulating the TrxR1 and elevating intracellular ROS, thereby leading to caspase-3 cleavage.

Conclusions

This study demonstrated that MoSe2 NUs under NIR irradiation can precisely and efficiently treat breast cancer and have great potential for clinical application.

Graphical Abstract

Introduction

Breast cancer (BC) is the most common malignancy among women. Since the 1980s, the global incidence rate has increased year by year (Siegel et al. 2023; Luo et al. 2022). The routine therapy of breast cancer covers surgery, radiotherapy, chemotherapy and other comprehensive treatments. However, radiotherapy and chemotherapy cannot eliminate local cancer cells due to limitations in chemotherapy tolerance (Tanwar et al. 2014; Liu et al. 2018). Therefore, this dilemma prompts experts and scholars to explore more effective alternative strategies (Hanafy 2021; Hanafy et al. 2021; Elsayed et al. 2021).Compared with traditional treatments, the location of breast cancer lesions provides a therapeutic window for near-infrared (NIR) photodynamic therapy.

In recent years, thermotherapy has been applied to treat cancer, but due to uncontrolled heating, burns occasionally occur. This photothermal regulated tumor treatment strategy is designed based on the principle of an NIR laser window in the range of 750 to 1000 nm, where the laser can penetrate several centimeters of body tissue without affecting the surface of normal skin (Chepurna et al. 2020; Jia et al. 2023). Moreover, NIR stimulated photodynamic therapy (PDT) has also become a potential anti-tumor treatment strategy. PDT with many advantages for tumor elimination still has its limitations. The difficulty of photosensitizer delivery and the hypoxic microenvironment of malignant solid tumors greatly affect the treatment efficiency of PDT (Zou et al. 2020; Yang and Chen 2019; Lan et al. 2019; Alzeibak et al. 2021). Additionally, the aggravation of hypoxia may cause several adverse consequences, including radiation resistance, tumor invasiveness, angiogenesis, and tumor metastasis (McDonald et al. 2016).

However, the conventional high concentration of hydrogen peroxide (H2O2) and hypoxia in tumor microenvironment provides excellent conditions for nanozymatic tumor therapy rather than PDT (Hao et al. 2022). Among them, peroxidase can convert H2O2 within the tumor microenvironment into cytotoxic hydroxyl radicals, however natural peroxidase is unstable and difficult to deliver to the tumor microenvironment (Lu et al. 2022; Sadhu et al. 2024; Harshita and Park 2023). Whereas POD-like nanozymes have tunable, long-term storage, good stability, and tunable catalytic properties, making them an excellent alternative (Dong et al. 2022; Xu et al. 2022; Chen et al. 2023). The most common POD-active nanomaterials are Fe and Fe-based oxides, but they tend to lack photothermal absorption properties (Gao and Yan 2019). No further enhancement of POD could be achieved. Therefore, it is of great value to synthesize nanozymes that have both photothermal properties and the ability to regulate their own POD activity. Additionally, thioredoxin reductase 1 (TrxR1) protein is a key member of the thioredoxin (Trx) system that catalyzes the transfer of electrons from NADPH to Trx, converting it to a reduced state, thereby participating in a variety of reactions that maintain redox balance and is an important detoxification mechanism to protect cells from reactive oxygen species (ROS). TrxR1 protein is over-expressed in various tumors and is negatively correlated with the clinical prognosis of patients with tumors (Duan et al. 2014). Notably, several studies underscored that Se have the potential to promote the apoptosis of cancer cells through suppressing the expression of TrxR1 (Liu et al. 2012). Numerous studies highlighted that selenium-based nanoparticles inhibit the expression of TrxR1 in cancer cells through the formation of diselenides between TrxR1 and selenium (Liu et al. 2012; Purohit et al. 2017; Pan et al. 2020; Skogastierna et al. 2012). Thus, the effective inhibition of TrxR1 by selenium-based nanomaterials holds great potential for enhancing ROS-mediated antitumor therapy.

Herein, our synthesized molybdenum selenide nanourchins (MoSe2 NUs) have excellent photothermal conversion efficiency, POD-like activity and good biocompatibility. In addition, the photothermal effect of the prepared MoSe2 NUs regulates heat therapy and enhance their POD activity to kill cancer cells through NIR light, accurately treating cancer. Mechanistically, MoSe2 induced an increase in intracellular ROS and downregulated the expression of TrxR1 in 4T1 cells, which in turn activated and cleaved caspase-3, an apoptotic executioner protein, while NIR light further cleaved caspase-3, which in turn enhanced the apoptosis-inducing ability of MoSe2 NUs (Scheme 1).

Scheme 1.
scheme 1

Schematic diagram of MoSe2 NUs synthesis route (a) and mechanism (b) of NIR-regulated nanozymatic/photothermal dual-modal therapy against breast tumor

Full size image

Experimental section

Materials and biochemicals

Selenium powder, hydrazine hydrate, 3,3’,5,5’-tetramethyl-benzidine (TMB) and sodium molybdate were bought from Macklin, China. The Calcein and PI were sourced from MedChemExpress. Fetal bovine serum (FBS) and Dulbecco’s Modified Eagle Medium (DMEM) were obtained from Procell. Additionally, we acquired 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) and the DCFH-DA probe from Sigma. The Annexin V-FITC/PI apoptosis assay kit was bought from Beijing Solarbio Science & Technology Co., Ltd. The antibodies for anti-TrxR1, and anti-Caspase-3 were obtained from CST and anti-GAPDH was purchased from Zen-Bio.

Synthesis of MoSe2 NUs

The synthesis of MoSe2 NUs was modified based on previous studies (Zhao et al. 2018) and divided into three processes. First, 2 mmol of selenium powder (Se) was weighed and dissolved in 10 mL hydrazine hydrate and sealed and stirred for 24 h to form the Se precursor solution. And then, 1 mmol of sodium molybdate (Na2MoO4) was weighed and dissolved in 20 mL pure water and stirred at room temperature for 40 mins to form the Mo precursor solution; Immediately, Se precursor solution was added to the Mo precursor solution, sonicated (300 W) for 15 min, and transferred to a 50 mL of hydrothermal reactor lined with polytetrafluoroethylene for 12 h; the heating temperatures were 120 ℃, respectively. At the end of the reaction, the MoSe2 NUs were transferred to a beaker and first washed five times with deionized water after the hydrothermal kettle was cooled to room temperature. Finally, the MoSe2 NUs were obtained and dried at 60 ℃ after washing with deionized water.

Characterization

Scanning electron microscopy (SEM) and transmission electron microscope (TEM) were employed to determine the nanomaterials’ morphology. The crystal profile characterization of MoSe2 NUs was proved by an automatic X-ray diffractometer (XRD) equipped with CuKα radiation.

Peroxidase-mimic activity detection of MoSe2 NUs

TMB and H2O2 as substrates were used to test the peroxidase (POD)-like catalytic activity of MoSe2 NUs. The absorbance of oxidized TMB at 652 nm was measured and recorded after 10 min of reaction using a UV–Vis spectrophotometer. In detail, the kinetic curves of the acetate buffer solution being composed of TMB, H2O2 (100 mM) in the presence of MONDs, were determined by UV–Vis spectrophotometer, respectively.

Photothermal effect of MoSe2 NUs

We irradiated MoSe2 NUs at different concentrations (0, 20, 40, 60, 80, and 100 μg mL−1) with an 808-nm NIR laser at 1.0 W/cm2 and continuously recorded the temperature changes with an infrared (IR) thermal imaging camera. We also monitored temperature changes in tubes containing MoSe2 NUs (100 μg mL−1) at different laser power densities (0.8, 1.0, 1.2, 1.4, 1.6, and 1.8 W/cm2). The photothermal conversion efficiency (PCE) was calculated based on the proposed algorithm after irradiating 100 µg/mL MoSe2 NUs with a 1.0 W/cm2 laser for 10 mins, followed by cooling for 20 mins (Chen et al. 2019).

Cytotoxicity assays and biocompatibility of MoSe2 NUs

High concentrations of MoSe2 NUs were sterilized by UV irradiation, and subsequently prepared into different concentrations of MoSe2 NUs in DMEM which were added to 96-well plates. Following 24 h of culture in 4T1 and L929 cells, MTT was added and cell viability was measured 4 h later.

Detection of intracellular ROS

The intracellular ROS content was measured by DCFH-DA. Cells were seeded onto plates overnight, received different treatments, and were incubated for 4 h at 37 ℃. Next, 500 μL of DCFH-DA (10 μM) was added and incubated for 30 mins. Following washing with PBS, the intracellular fluorescence was captured with a fluorescence microscope.

Live/dead cell staining

4T1 cells were seeded in plates and subjected to various treatments. After the completion of treatment, the cells were washed for 2 times. 4T1 cells were stained with Calcein AM/PI and incubated at 37 °C for 30 mins. After incubation and washing, the live/dead 4T1 cells was observed with a fluorescence microscope.

Apoptosis assay

4T1 cells in 12-well plates were digested by washing twice with PBS after receiving different treatments. 4T1 cells were subsequently stained with (PI and Annexin V) for 15 mins. Subsequently, cellular fluorescence signals were quantified by flow cytometry. The sum of Q2 and Q3 was calculated as the apoptotic rate.

Statistical analysis

Statistical analysis and image processing were performed using Origin 2018 and SPSS 22.0. Data were tested for normality and presented as mean ± S.D.; the Student’s t-test or One-way ANOVA was used to calculate the P-value, and further details were provided in figure legends.

Results and discussion

Characterizations

As presented in Fig. 1a,b, the SEM image and TEM image revealed the successful synthesis of MoSe2 NUs with a sea urchin-like nanostructure uniformly distributed around 100 nm in size. Compared to structures such as nanodots, nanosheets, and nanospheres (Qi and Liu 2019; Yuwen et al. 2016; Liu et al. 2023; Wu et al. 2016), the sea urchin-like structure of MoSe2 NUs may expose more oxygen vacancies and more easily exhibit enzyme activity(Zhou et al. 2023; Zhang et al. 2023). The image of MoSe2 NUs were shown in Figure S1. Subsequently, we detected that the hydrodynamic diameter of MoSe2 NUs was about 142 nm and the zeta potential was − 30.84 mV (Fig. 1c,d). The FT-IR spectrum of MoSe2 NUs was shown in Figure S2, which is similar to previous study (Kailasa et al. 2023). The structural properties of the MoSe2 NUs were investigated by XRD in the 2θ range from 20 to 80. Besides, the powder XRD pattern in Fig. 1e revealed that the peak of MoSe2 NUs matched the reflections of crystallographic information (PDF # 29–0914). These results suggest that the MoSe2 NUs has been successfully synthesized.

Fig. 1
figure 1

a, b SEM (a) and TEM (b) of MoSe2 NUs. c, d The DLS (c) and zeta potential (d) of MoSe2 NUs. e The XRD of MoSe2 NUs.

Full size image

Photothermal effect and photostability of MoSe2 NUs

Firstly, we investigated the photothermal effect of MoSe2 NUs using an infrared thermal imaging camera. We found that as the concentration of MoSe2 NUs increased, the photothermal effect was significantly enhanced, indicating a close correlation between its photothermal effect and concentration. The time-dependent temperature curve is shown in Fig. 2a. The temperature of MoSe2 NUs (100 μg mL−1) rose to 52.6 ℃ and the increased temperature (ΔT) within 5 mins was up to 24.8 ℃. The temperature of MoSe2 NUs with a concentration of 60 μg mL−1 can also reach 45.6 ℃ within 5 mins under laser irradiation. In addition, from the IR thermal image in Fig. 2b, the solution color changes from purple to yellow, and we can see that the photothermal effect of MoSe2 NUs depends on the laser power. The temperature of the MoSe2 NUs solution increases continuously with the increase of irradiation time and laser power.

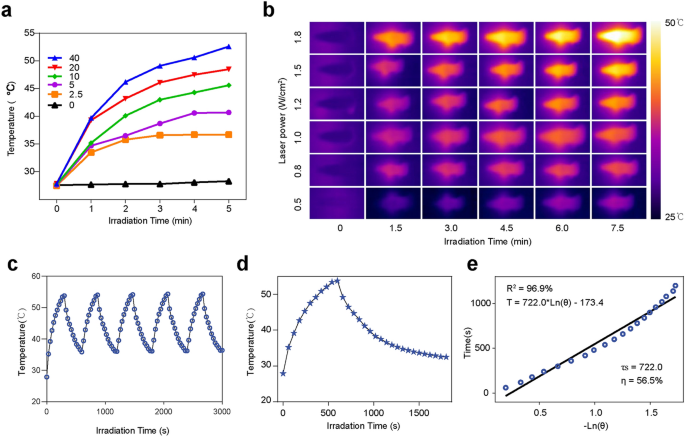

Fig. 2
figure 2

a Temperature curves against time of Control (PBS) and MoSe2 NUs with diverse concentrations (20–100 μg mL−1) under 808 nm laser. b IR thermal images of MoSe2 NUs with different laser power and irradiation time. c Five irradiation/cooling cycles of MoSe2 NUs (100 μg mL−1). d The photothermal profile of MoSe2 NUs in PBS under NIR irradiation for 600 s and then NIR laser was switched off. e Linear time data versus −ln(θ) acquired from the cooling period of (d)

Full size image

When PBS served as the control group and was irradiated at the same power density, we observed only a marginal temperature increase of approximately 0.7 ℃. This suggests that the thermal effect of PBS alone remained largely unaffected. Typically, local heating of tumor cells to temperatures exceeding 45 ℃ can lead to complete tumor eradication. However, it's crucial to avoid excessively high temperatures, as they can potentially inflict severe damage to surrounding healthy tissues adjacent to the tumor. Taking these considerations into account, we determined that, in this study, a concentration of 80 μg mL−1 of MoSe2 NUs was the most optimal choice for thermal ablation of tumor cells. This concentration resulted in a solution temperature precisely reaching 48.5 ℃, which is adequate for tumor cell ablation while minimizing harm to the surrounding normal tissue (Ding et al. 2021).

Subsequently, as shown in Fig. 2c, we further investigated the photothermal stability of MoSe2 NUs by five irradiation/cooling cycles (one cycle includes heating for 5 mins and cooling for 5 mins). The photothermal conversion performance of MoSe2 NU had little variation over five heating and cooling cycles. The photothermal conversion efficiency (PCE) of MoSe2 NUs was evaluated via recording the temperature changes of MoSe2 NUs (100 μg mL−1) during a 10-mins laser irradiation period (Fig. 2d). Detailed information regarding the PCE calculation is available in the Supporting Information. The calculated PCE for MoSe2 NUs at a concentration of 100 μg mL−1 in PBS stands impressively high at 56.5%. Taken together, MoSe2 NUs are excellent nanomaterials with good photothermal conversion efficiency and photostability.

The photothermal-enhanced POD activity of MoSe2 NUs

To explore the peroxidase-like activity of the as-prepared MoSe2 NUs, H2O2 and TMB were used as the substrates for the detection of the ultraviolet spectrum. Peroxidase has the capability to react with H2O2, leading to the generation of hydroxyl radicals (-OH). These -OH, in turn, facilitate the conversion of TMB into its oxidized form, resulting in the development of a distinct blue color characterized by a prominent peak at 652 nm. Figure 3a results indicated that neither MoSe2 NUs nor H2O2 combined with TMB alone resulted in the generation of a blue color or any discernible UV–vis absorbance. Similarly, the combination of H2O2 with TMB did not produce weak absorption at 652 nm in the UV–vis spectrum. However, it's noteworthy that MoSe2 NUs exhibited the ability to catalyze the oxidation of TMB in the presence of H2O2, resulting in the development of a blue aqueous solution characterized by an absorption peak at 652 nm.

Fig. 3.
figure 3

a The POD-like activity of MoSe2 NUs: the UV–vis spectra of the different treatments, the inset exhibited the corresponding image. b The POD-like activity of MoSe2 NUs with or without NIR (808 nm, 1 W cm−2). c The Michaelis–Menten kinetics fitting with initial rate [V] against TMB concentrations. d Corresponding Lineweaver–Burk plots of c (n = 3).

Full size image

The POD-like activity of MoSe2 NUs at concentrations of 20 μg mL−1 with or without NIR light was also determined and is shown in Fig. 3b. After NIR light irradiation for 10 mins, the prominent peak of the MoSe2 NUs + H2O2 + TMB + NIR was enhanced to the ≈2.05 fold of the MoSe2 NUs + H2O2 + TMB. In summary, the results revealed that the MoSe2 NUs possess POD-like activity, which can be boosted upon NIR irradiation. Correspondingly, we compared the enzyme kinetic parameters of MoSe2 NUs with or without NIR. The maximum reaction rate (Vmax) and Michaelis Menten constant (Km) of MoSe2 NUs with or without NIR against TMB were calculated according to the Lineweaver Burk plot. As shown in Fig. 3c, d, by plotting the initial rate of MoSe2 NUs with or without NIR against different TMB concentrations, it was found that the reciprocal of the initial rate increases linearly with the reciprocal of TMB concentration. According to the Michaelis Equation, the Km and Vmax of MoSe2 NUs for TMB are 1.019 mM and 5.38 × 10–8 M s−1, respectively; while the Km and Vmax of MoSe2 NUs + NIR for TMB are 1.182 mM and 7.16 × 10–8 M s−1, respectively. These data confirmed that the MoSe2 NUs + NIR system can serve as an effective catalyst, generating more -OH for tumor treatment compared to MoSe2 NUs alone.

Photocytotoxicity and biocompatibility of MoSe2 NUs

Since breast cancer is usually located in the skin, it is appropriate and feasible to treat 4T1 cells of breast cancer with NIR laser irradiation, so 4T1 cells are selected as the research object of these studies e (Tray et al. 2019; Li et al. 2022). In the context of cancer treatment strategies, assessing the biocompatibility and cytotoxicity of MoSe2 NUs towards fibroblasts is fundamental for ideal nanomedicine. The MTT assay was employed to evaluate the cytotoxicity and biocompatibility of MoSe2 NUs. Figure S3 illustrated the cell viability of both L929 and 4T1 cells cultured with varying concentrations of MoSe2 NUs in DMEM for 24 h. Across the concentration range of 0 to 100 μg mL−1 of MoSe2 NUs, the cell viability in both groups exceeded 90%, indicating minimal cytotoxicity and favorable biocompatibility of MoSe2 NUs with L929 cells. Also, the uptake of MoSe2 NUs in 4T1 cells was stronger than that in L929 (Figure S4). Furthermore, a dual-modal therapeutic approach combining photothermal therapy (PTT) and nanozymatic effects of MoSe2 NUs on 4T1 cells was investigated. The cytotoxic effects on 4T1 cells induced by MoSe2 NUs (80 μg mL−1) with or without NIR (1.0 W/cm2) were confirmed by staining 4T1 cells with Calcein-AM and PI. As depicted in Fig. 4a, compared to the Control group, the majority of 4T1 cells exhibited green fluorescence after incubation with either MoSe2 NUs alone or under NIR irradiation (10 mins) alone, indicating that MoSe2 NUs or laser irradiation alone were not effective in inactivating or treating 4T1 cells. A small amount of red fluorescence in the MoSe2 NUs group indicated the relatively low cytotoxicity of MoSe2 NUs toward cancer cells. In contrast, the PTT/Nanozymatic synergistic effect of MoSe2 NUs resulted in nearly all 4T1 cells being inhibited when cultured with MoSe2 NUs under NIR for 10 mins, as evident from the substantial red fluorescence observed in Fig. 4a. We further detected the apoptosis level of tumor cells after different treatments. The results in Fig. 4b revealed that the apoptotic rates in the Control and NIR groups (1.0 W/cm2) were 9.70% and 9.84%, respectively. The treatment of MoSe2 NUs (80 μg mL−1) alone enhanced the apoptosis rate to 25.13%, while the apoptotic rates of MoSe2 NUs + NIR groups rose to 61.02%. It reflected that NIR markedly enhanced the induction of apoptosis in 4T1 cells by MoSe2 NUs.

Fig. 4
figure 4

a Fluorescence photographs of live and dead staining in 4T1 cells with different treatments. b The apoptosis rate of 4T1 cells with different treatments. c The cell viability of MoSe2 NUs at various concentrations with or without NIR. d Immunoblot of TrxR1, cleaved caspase-3, and GAPDH expression in 4T1 cells with different treatments. (n = 3, mean ± S.D.; ns, no significant; ****P < 0.0001; one-way ANOVA)

Full size image

As shown in Fig. 4c, we also quantitatively compared the cytotoxicity of different concentrations of MoSe2 NUs with or without NIR (1.0 W/cm2) on 4T1 cells and found that the cytotoxicity of MoSe2 NUs + NIR was superior to that of MoSe2 NUs treatment alone under different concentrations. The cell viability of MoSe2 NUs and MoSe2 NUs + NIR at 80 μg mL−1 was 57.0% and 35.4%, respectively, with statistically significant differences. There is evidence that the TrxR1 protein, as a NADPH-dependent reductase of thioredoxin disulfide, is upregulated in various tumors and negatively correlated with the clinical prognosis of patients (Duan et al. 2014). Numerous studies highlighted that selenium-based nanoparticles, inhibit the expression of TrxR1 in cancer cells through the formation of diselenides between TrxR1 and selenium (Liu et al. 2012; Purohit et al. 2017; Pan et al. 2020; Skogastierna et al. 2012). Therefore, the expression of TrxR1 in 4T1 cells was further detected. As depicted in Fig. 4d, the expression of TrxR1 exhibited a decline corresponding to the increasing concentration of MoSe2 NUs, and this decrease was even more pronounced when combined with NIR (1.0 W/cm2), highlighting the potent inhibitory effect of MoSe2 NUs + NIR on TrxR1. In parallel, we also examined cellular apoptosis at the molecular level. Caspase-3, a cysteine-aspartic acid protease, undergoes cleavage at an aspartate residue, resulting in the formation of p12 and p17 subunits, ultimately giving rise to cleaved Caspase-3, which plays a pivotal role in orchestrating the morphological changes associated with apoptosis (Hague et al. 2004). Also, the presence of MoSe2 NUs treatment led to an upregulation of cleaved caspase-3, and this effect was further enhanced when combined with NIR, indicating that MoSe2 NUs induced a more pronounced level of apoptosis with the assistance of NIR.

Taking these results together, it can be concluded that NIR irradiation of MoSe2 NUs can induce more apoptosis and downregulate the expression of TrxR1, exerting more effective proliferation suppression on 4T1 cancer cells than MoSe2 NUs treatment alone.

ROS triggered by MoSe2 NUs under NIR irradiation induces apoptosis in 4T1 cells

Further, given the apoptosis-inducing potential of photothermal treatment (Wang et al. 2018), we explore the possible mechanism of MoSe2 NUs-induced apoptosis. In Fig. 5a, we detected intracellular ROS levels in 4T1 cells with different treatments by ROS probe 2',7'-Dichlorodihydrofluorescein diacetate (DCFH-DA). We found that the fluorescence intensity of 4T1 cells under NIR irradiation (1.0 W/cm2) only was the same as that of the Control, while the fluorescence intensity of the MoSe2 NUs (40 μg mL−1) treatment group exhibited partial enhancement, while the green fluorescence of the NIR + MoSe2 NUs group showed obvious enhancement compared to the MoSe2 NUs group. To demonstrate ROS-induced cytotoxicity by MoSe2 NUs, N-Acetyl-L-cysteine (NAC) and L-Glutathione reduced (GSH), as ROS scavengers, were applied to inhibit ROS (Hosseini et al. 2019; Niu et al. 2021). The results in Fig. 5b demonstrated that the addition of NAC and GSH could indeed inhibit the cytotoxicity of NIR + MoSe2 NUs induced by ROS. Correspondingly, we detected the apoptotic protein cleaved caspase-3 and TrxR1. As illustrated in Fig. 5c, the addition of ROS scavengers NAC caused a decrease in the expression of cleaved caspase-3 induced by MoSe2 NUs + NIR, while the low-expression of TrxR1 by MoSe2 NUs + NIR was almost unchanged. In summary, MoSe2 NUs + NIR could downregulate TrxR1 and elicit the increase of ROS level, subsequently inducing apoptosis of 4T1 cells.

Fig. 5.
figure 5

a Fluorescence plots of 4T1 cells cultured with DCFH-DA after different treatments. b The cell viability of 4T1 cells with different treatments. c Immunoblot of TrxR1, cleaved caspase-3 and GAPDH expression of 4T1 cells with indicated treatments. (n = 3, mean ± S.D.; ns, no significant; *P < 0.05; **P < 0.01; one-way ANOVA)

Full size image

MoSe2 NUs exert potent in vivo anti-tumor effects under NIR irradiation

Considering the excellent in vitro anti-tumor effect of MoSe2 NUs under NIR, we further validated the combined therapy’s in vivo anti-tumor effect. As shown in Fig. 6a, we first constructed 4T1 cell subcutaneous tumor-bearing mice and peritumorally injected MoSe2 NUs (4 mg kg−1) every 2 days with or without NIR (1.0 W/cm2). To assess the in vivo anti-tumor efficacy and biosafety, we monitored the tumor size and weight of 4T1 tumor-bearing mice every 2 days. After 14 days of treatment, the mice were euthanized, and the subcutaneous tumor tissue was removed and weighed. Representative images illustrating the tumor treatment outcomes for each group are presented in Fig. 6b. As depicted in Fig. 6c, the volume of tumors in the Control and NIR groups steadily increased, whereas the MoSe2 NUs alone or MoSe2 NUs + NIR treatment effectively reduced the tumor volume, the tumor volume treated with MoSe2 NUs + NIR was lower than that treated with MoSe2 NUs alone.

Fig. 6
figure 6

In vivo assessment of the anti-tumor effect of MoSe2 NUs treatment under NIR. a Illustration of the experimental procedure. b Photographic representations of tumors from tumor-bearing mice subjected to various treatment regimens. c, d Alterations in tumor volume c and tumor mass d within the tumor-bearing models of the specified groups. (n = 5, mean ± S.D.; ns, no significant; *P < 0.05; **P < 0.01; one-way ANOVA). e) Fluctuations in the body weight of tumor-bearing models undergoing different treatments. f, g Immunohistochemistry (IHC) analysis of xenografted tumor sections, showing immunostaining for TrxR1 (f), and TUNEL staining g in the indicated groups (n = 3). Scale bar: 50 µm (400 ×)

Full size image

Furthermore, based on the excised tumor mass data shown in Fig. 6d, it is evident that MoSe2 NUs + NIR treatment significantly inhibited tumor proliferation compared to the Control group, with an inhibition rate of 69.7%, which was higher than the inhibition rate observed with MoSe2 NUs treatment alone (35.1% inhibition rate). Additionally, as demonstrated in Fig. 6e, the body weight of mice remained relatively stable across all groups, underscoring the favorable biosafety profile of both MoSe2 NUs and MoSe2 NUs + NIR with respect to mouse body weight. In addition, we also compared the expression of TrxR1 and Ki67 between the groups via Immunohistochemistry (IHC). As shown in Fig. 6f, both MoSe2 NUs and MoSe2 NUs + NIR reduced the expression of TrxR1, while the MoSe2 NUs + NIR group had the lowest expression of TrxR1, demonstrating the TrxR1 inhibition effect of MoSe2 NUs with or without NIR. Also, the results of TUNNEL staining are consistent with the expression of TrxR1, indicating that MoSe2 NUs + NIR treatment has a stronger apoptotic induction effect in vivo (Fig. 6g). Of course, the in vivo biocompatibility of MoSe2 NUs was also evaluated. As shown in Figure S5, no significant difference was observed in the important organs (heart, liver, spleen, lungs, and kidneys) between the two groups of mice, and the MoSe2 NUs treatment did not cause significant toxic damage to the main organs. The biochemical analysis results also showed that there was no significant difference in liver and kidney function indicators between the MoSe2 NUs treatment group and the control group (Figure S6). In summary, MoSe2 NUs with good biosafety can effectively inhibit tumor progression in vivo.

Conclusions

In summary, the as-prepared MoSe2 NUs with good biocompatibility had excellent photothermal conversion ability, photothermal-enhanced POD-like activity, and inhibition effect of TrxR1. Given this, MoSe2 NUs under NIR irradiation could effectively produce cytotoxic OH − under single-wavelength laser irradiation, which in turn induces apoptosis. In addition, MoSe2 NUs exhibited good photothermal stability. Surprisingly, MoSe2 NUs still possess good PCE even after five heating and cooling cycles. Importantly, NIR irradiation could potentiate the POD-like activity of MoSe2 NUs to ≈2.05 folds of MoSe2 NUs only. While the apoptosis rate elicited by MoSe2 NUs + NIR increased by 36% relative to MoSe2 NUs only, and the MoSe2 NUs + NIR induced more expression of cleaved caspase 3 than MoSe2 NUs treatment alone. Notably, MoSe2 NUs + NIR presented higher therapeutic efficacy on BC than MoSe2 NUs alone, owing to PTT, inhibition of TrxR1, and photothermal-enhanced nanozymatic therapy. In conclusion, the combination of MoSe2 NU-based PTT and photothermal-enhanced nanozyme therapy can effectively improve the treatment of cancer cells, while its good biocompatibility makes it more potential for clinical application. This functional synergistic treatment paves a precise and efficient way for breast cancer treatment under near-infrared excitation.
